Pre-Assembly Tips

Welcome to the assembly manual for the Ridewave MiniWave Folding eBike. This guide will take you step-by-step through the process of assembling your new bike. Please read through the instructions carefully before starting to ensure a smooth assembly process. Bike will arrive 95% assembled (electronics are pre-assembled).Preparing your Ridewave MiniWave Folding eBike is an exciting process! Here are some tips to ensure everything goes smoothly:

1. Keep a clean, open workspace for the assembly process.

2. Avoid using sharp tools near cables or wires to prevent accidental damage.

3. If you’re not confident assembling the bike, consider visiting a local bike shop for professional assistance.

Contents of the box

The box includes the following items:

• Ridewave MiniWave Folding eBike

• Battery charger

• User Manual

• Maintenance grease

• Battery keys

• Toolkit bag containing:

  • 8/10mm Wrench

  • 13/15mm Wrench

  • 13/16mm Wrench

  • 2.5mm Hex Key

  • 3mm Hex Key

  • 4mm Hex Key

  • 5mm Hex Key

  • 6mm Hex Key

  • 7mm Hex Key

Step 1: Unpack the Bike

• Opening the box: Carefully open the box using scissors or a Stanley knife. Avoid cutting too deeply to prevent damaging the bike or accessories. Remove the accessories box, which contains essential tools and components.

• Getting bike ready for unfolding: After removing the accessories box, lift the bike out with assistance or cut the sides of the box to make it easier to access. Remove all protective materials (foam, cardboard, zip ties, and tape). Pay extra attention to avoid cutting wires while removing zip ties.



Step 2: Fold Out the Bike Frame

• Folding-out bike: Engage the kickstand so the bike can stand on its own. Hold the rear of the bike frame behind the fold point and the front of the bike above the wheel forks. Gently unfold the bike until the front and rear wheels align.

• Locking the fold: Fasten the frame latch by pulling the small button towards the front and locking the latch in place. This ensures the frame stays secure during rides.

Step 3: Unfold the Pedals

• To ready the pedals:

  • 1. Fold the pedal upwards and rotate it until it locks in place horizontally. The outer, folding part of the pedal, will need to be pushed towards the crankset so that the pedal will sit perfectly flat in one-piece.

  • 2. Repeat the process for the other side. Ensure both pedals are securely installed.

Step 4: Assemble the Handlebars

• To assemble the handlebars:

  • 1. Unfold the handlebar stem and fasten the latch similarly to the main frame's latch.

  • 2. Use the 4mm hex key to remove the four bolts on the handlebar clasp.

  • 3. Insert the handlebars into the clasp and align them using the horizontal guidelines evident on the handlebars. These guidelines should not be visible after the clasp is screwed on, use it as a guide to align the handlebars.

  • 4. Adjust the rotation so the brake levers are comfortable and close to level with the ground.

  • 5. Tighten the bolts evenly to secure the handlebars in place.

Step 6: Pumping the Tyres

• When preparing to pump the tyres:

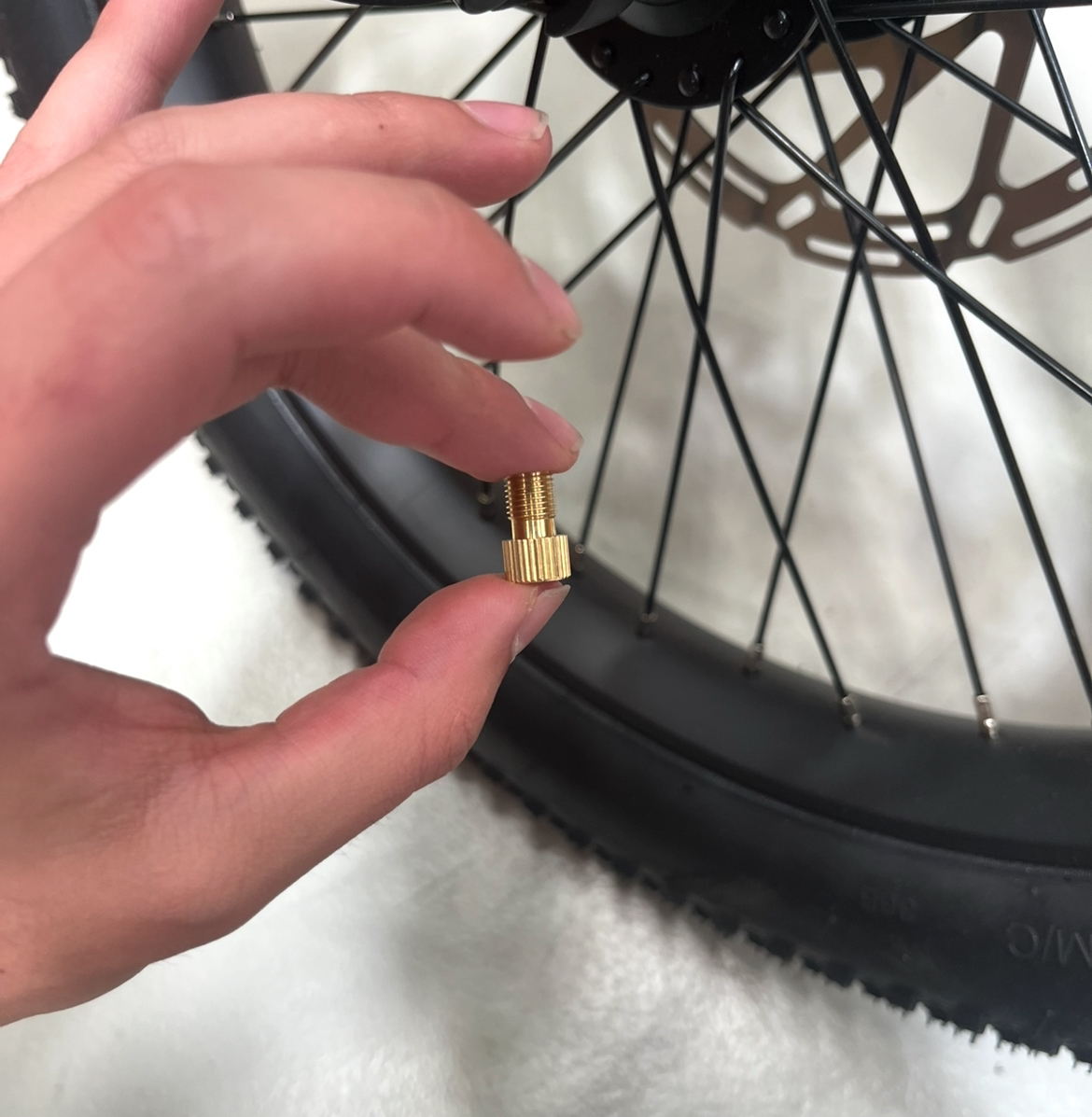

  • IF YOUR MINIWAVE DOESN’T HAVE A SCHRADER (AUS STANDARD) VALVE: Locate the valve adapter from within your MiniWave box. The first picture in this step shows the valve adapter in my hands.
  • Screw on the adapter to the valve as seen in the picture that follows. This now allows the tyres to be pumped by a standard australian nozzle.
  • Use a tyre pump to inflate the tyres to the recommended PSI listed on the side of the tyres. For the MiniWave, this is a maximum inflation pressure of 35 PSI.
    • Inflating tyres: Pump both the front and rear tyres to the pressure specified on the tyre sidewall. For the MiniWave the recommended PSI is between 5-35.
    • For a Softer Ride: We recommend a PSI range of 5-20 for a smoother, more comfortable ride. This pressure is ideal for the MiniWave is best suited for riders who frequently encounter uneven or off-road terrain.
    • For a Firmer Ride: If you prefer a sturdier and more responsive feel, aim for a PSI range of 20-35. Higher pressure reduces the frequency of pumping and is better suited for consistently flat terrain, such as urban roads.
    • Finding Your Ideal PSI: Experiment with different pressure levels in the front and rear tires until you discover what feels best for your riding style and terrain. Adjust as needed to achieve your desired balance of comfort and performance.

Important:

• While inflating, pause occasionally to check that the tyre bead (indicated with arrows) is properly seated around the rim.
• Ensure that the pumping nozzle is correctly attached to the inner tube valve, air should escape before the lever is adjusted. (Proper attachment circled in red)
• If the bead starts to rise unevenly, deflate the tyre slightly and press the bead back into place before continuing.
• Ensure the tyre bead line (a thin moulded line near the sidewall) is evenly positioned just above the rim on both sides.
• If any part of the inner tube becomes exposed during inflation, stop immediately as this can cause the tube to burst.

Properly seating the bead ensures safe and consistent tyre inflation.

Final Checks

Before riding your Ridewave MiniWave Folding eBike, perform the following checks:

- Ensure all bolts are tightly fastened.

- Test the folding mechanisms to ensure they are secure.

- Check the tire pressure and inflate as needed.

Congratulations! Your Ridewave MiniWave Folding eBike is now fully assembled. Enjoy your ride and don’t hesitate to contact our support team for any additional assistance.
