E-bike Handlebar Side Mirror Set AssemblyUpdated 9 days ago

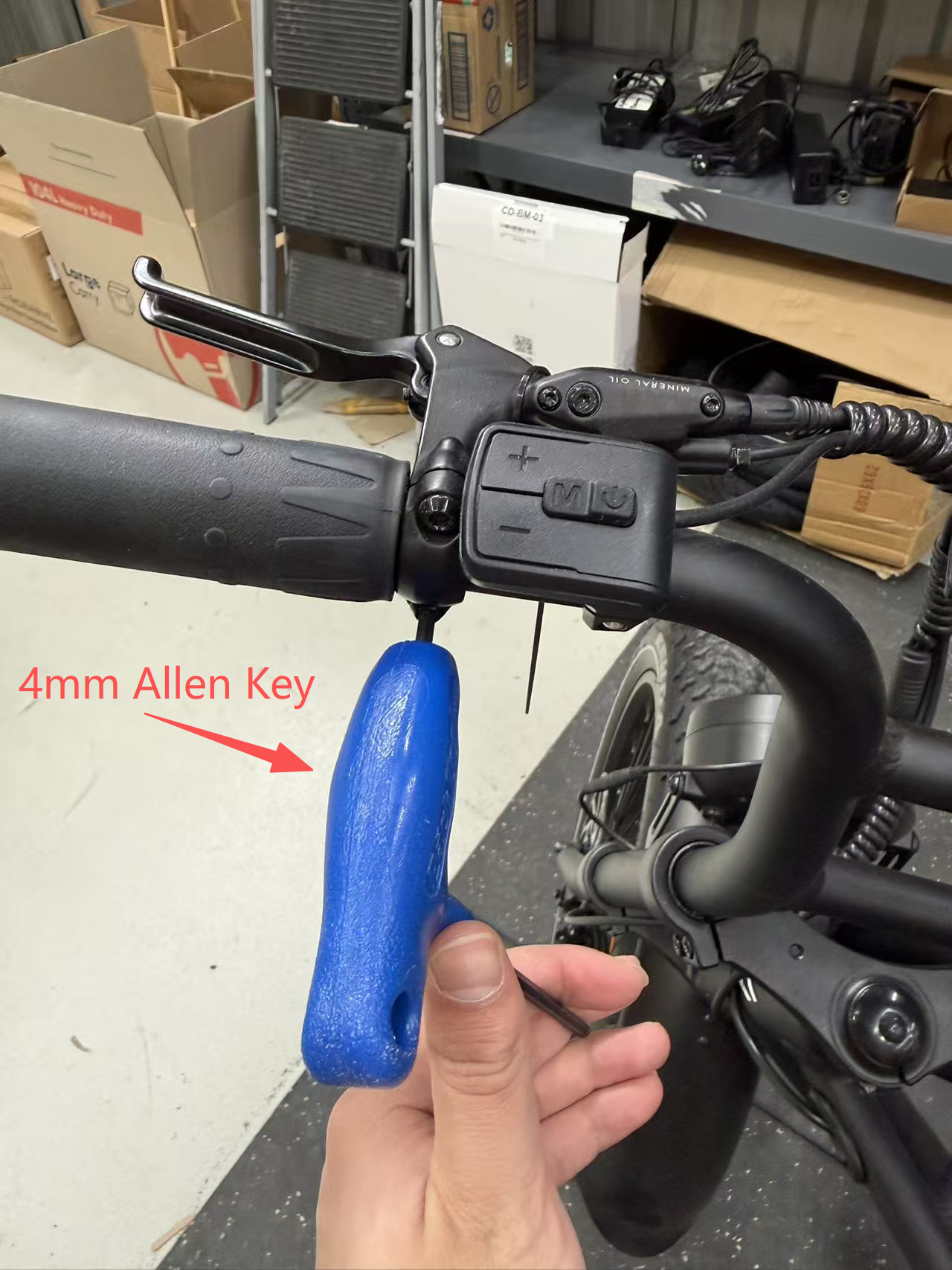

- On the left handlebar, use a 4 mm Allen key to slightly loosen the rear brake lever bolts, and a 2.5 mm Allen key to loosen the display controller clamp. Slide both components gently to the right to create enough space for installing the side mirror.

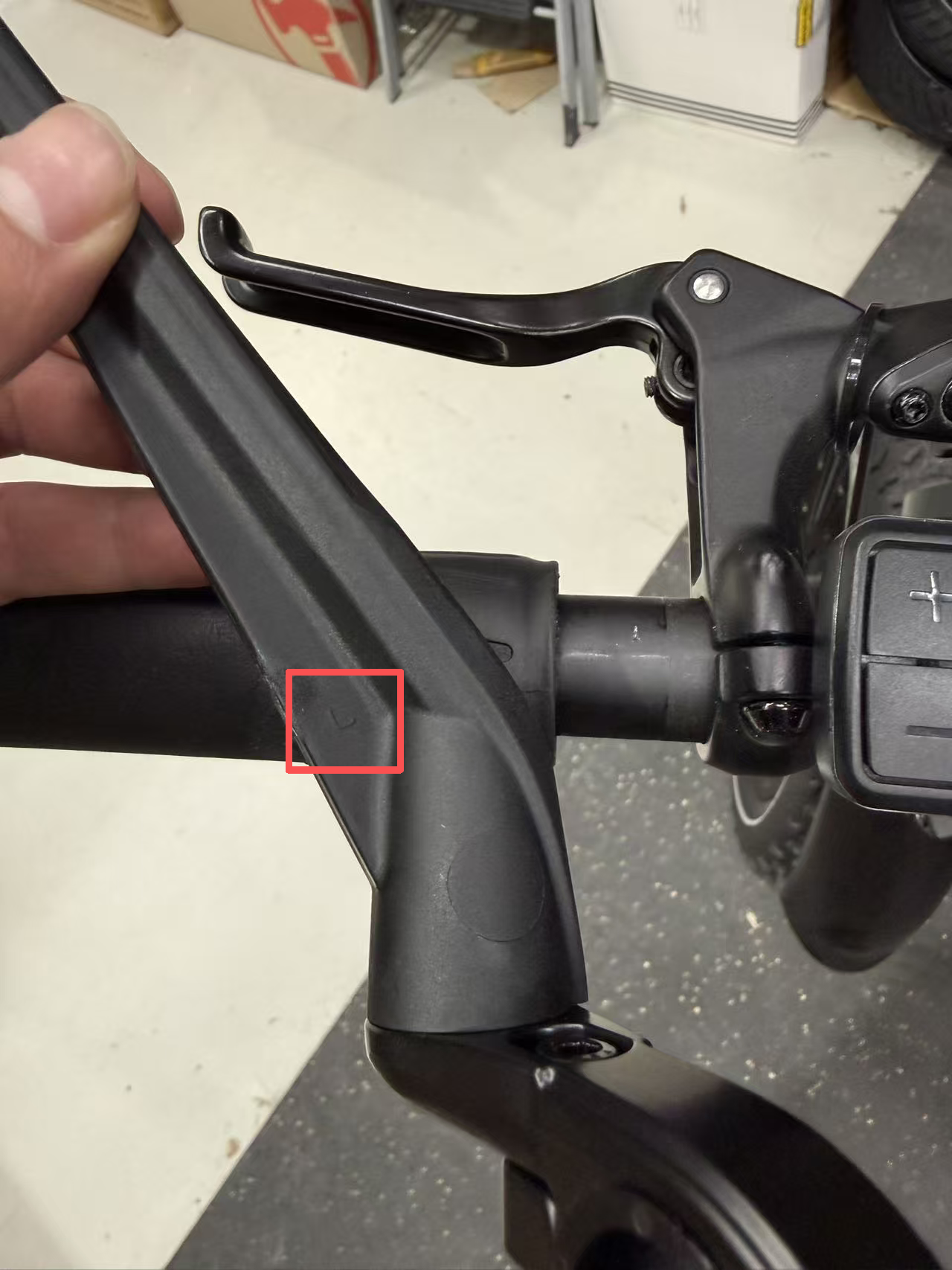

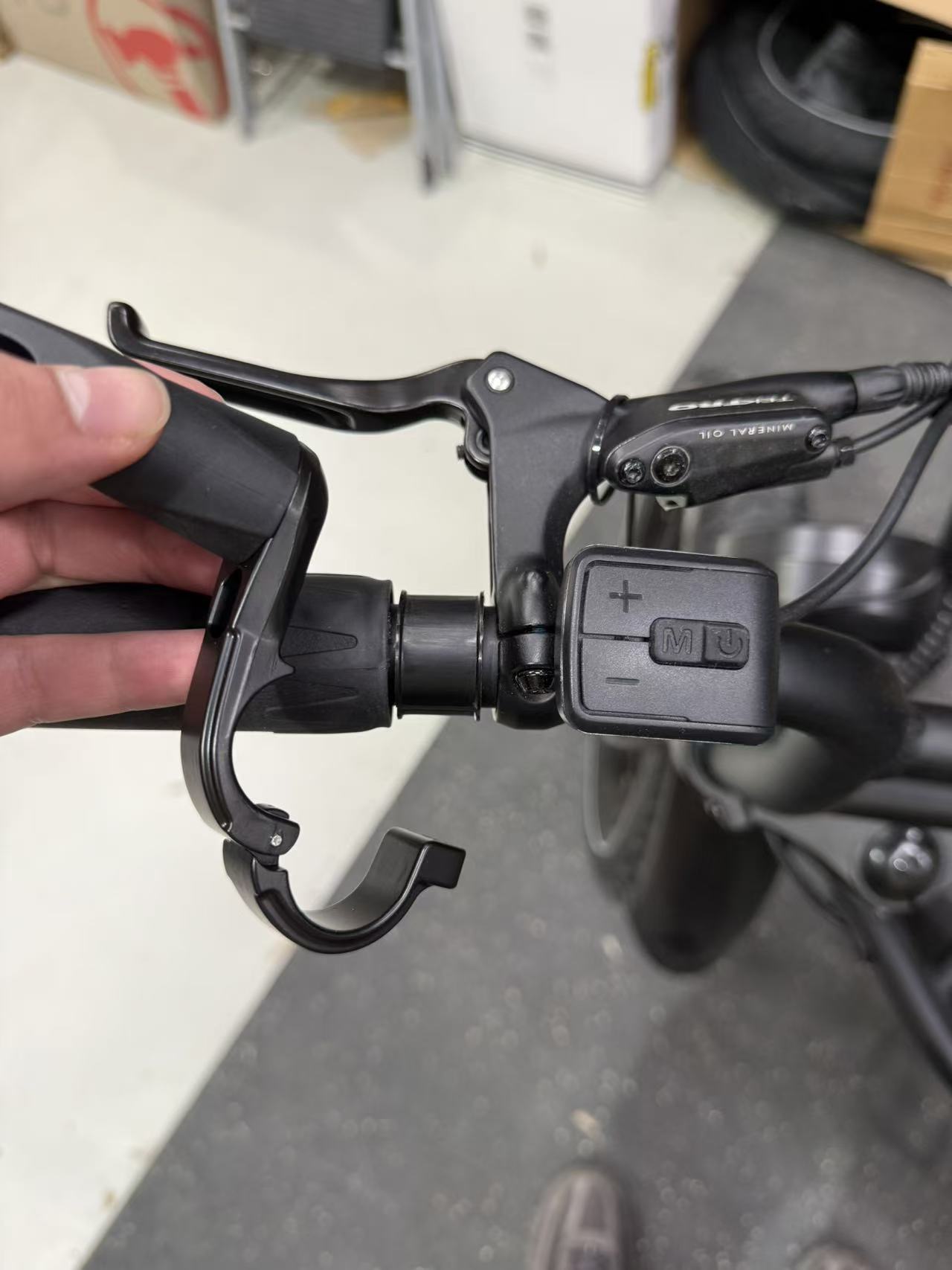

- Once you have enough room on the handlebar, locate the left mirror (marked with an “L” on the arm). Unscrew the clamp and place the plastic spacer around the handlebar.

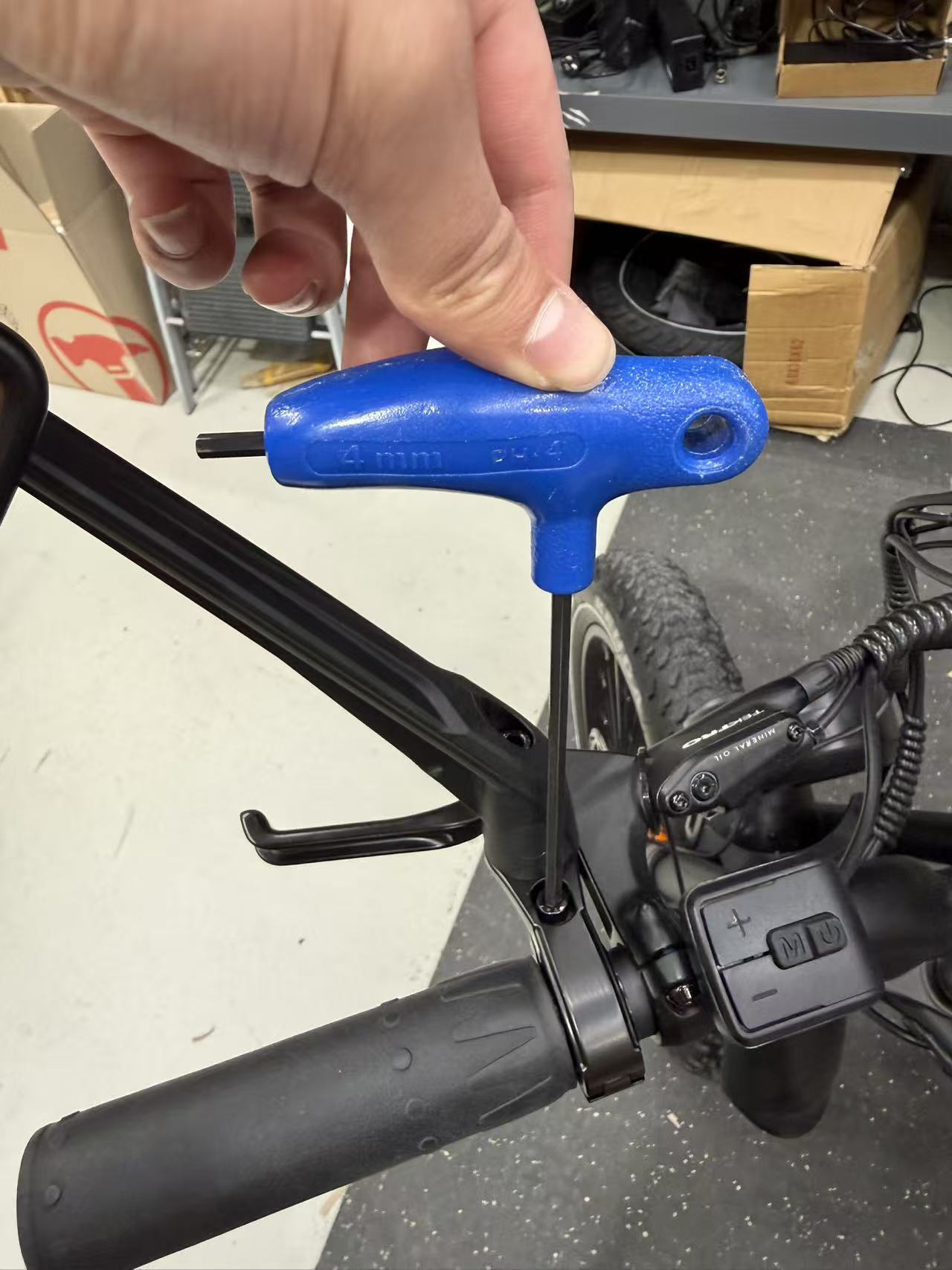

- Fit the mirror clamp over the spacer, ensuring there’s no gap between the handlebar grip and the mirror mount. Tighten the mirror securely using a 4 mm Allen key.

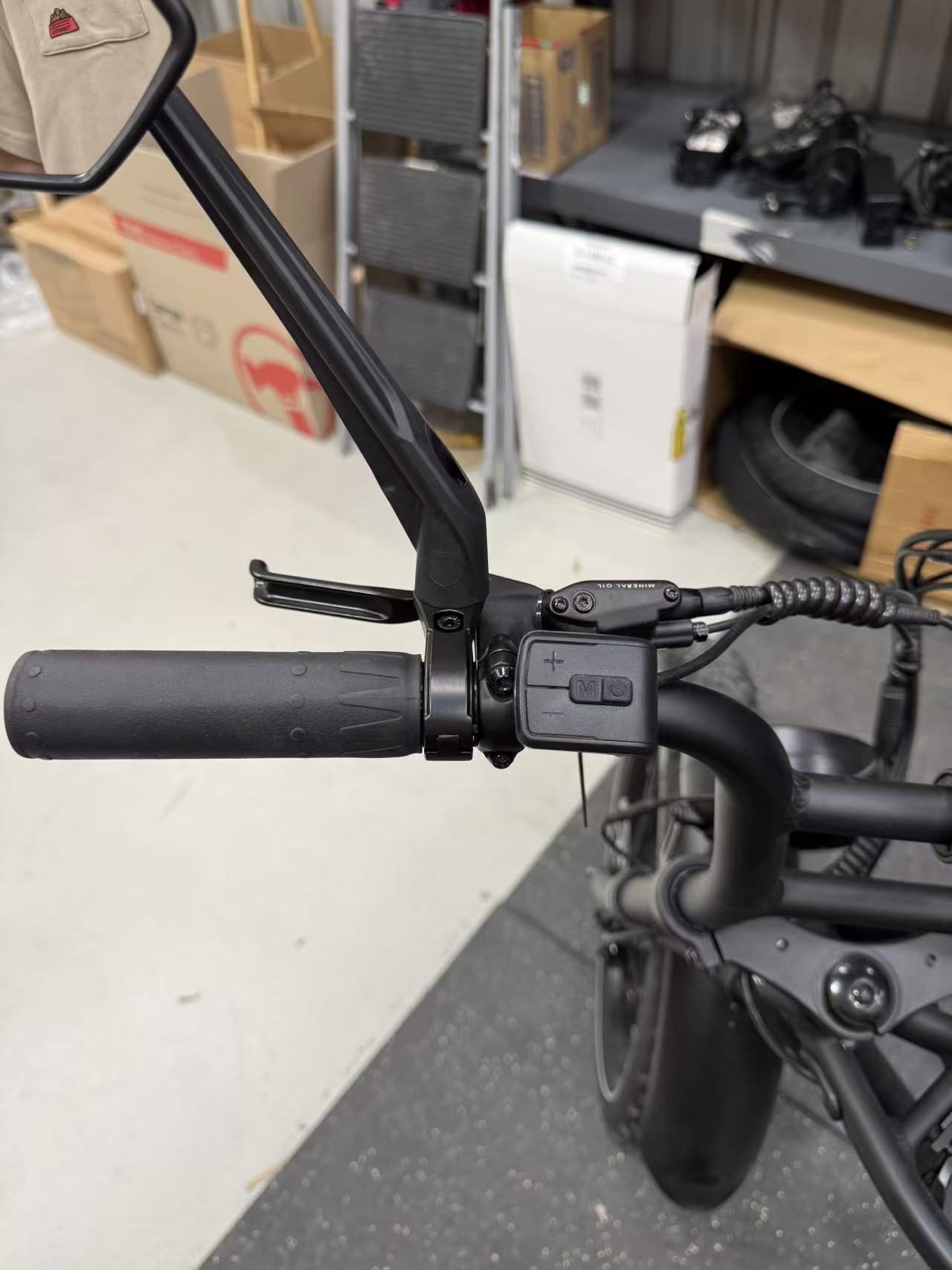

- When you’re satisfied with the position, rotate the mirror arm into place, then adjust the mirror by hand to achieve the desired viewing angle (it only moves in one direction). Move the rear brake lever and display controller back toward the left side, positioning them as close to the mirror as comfortable.

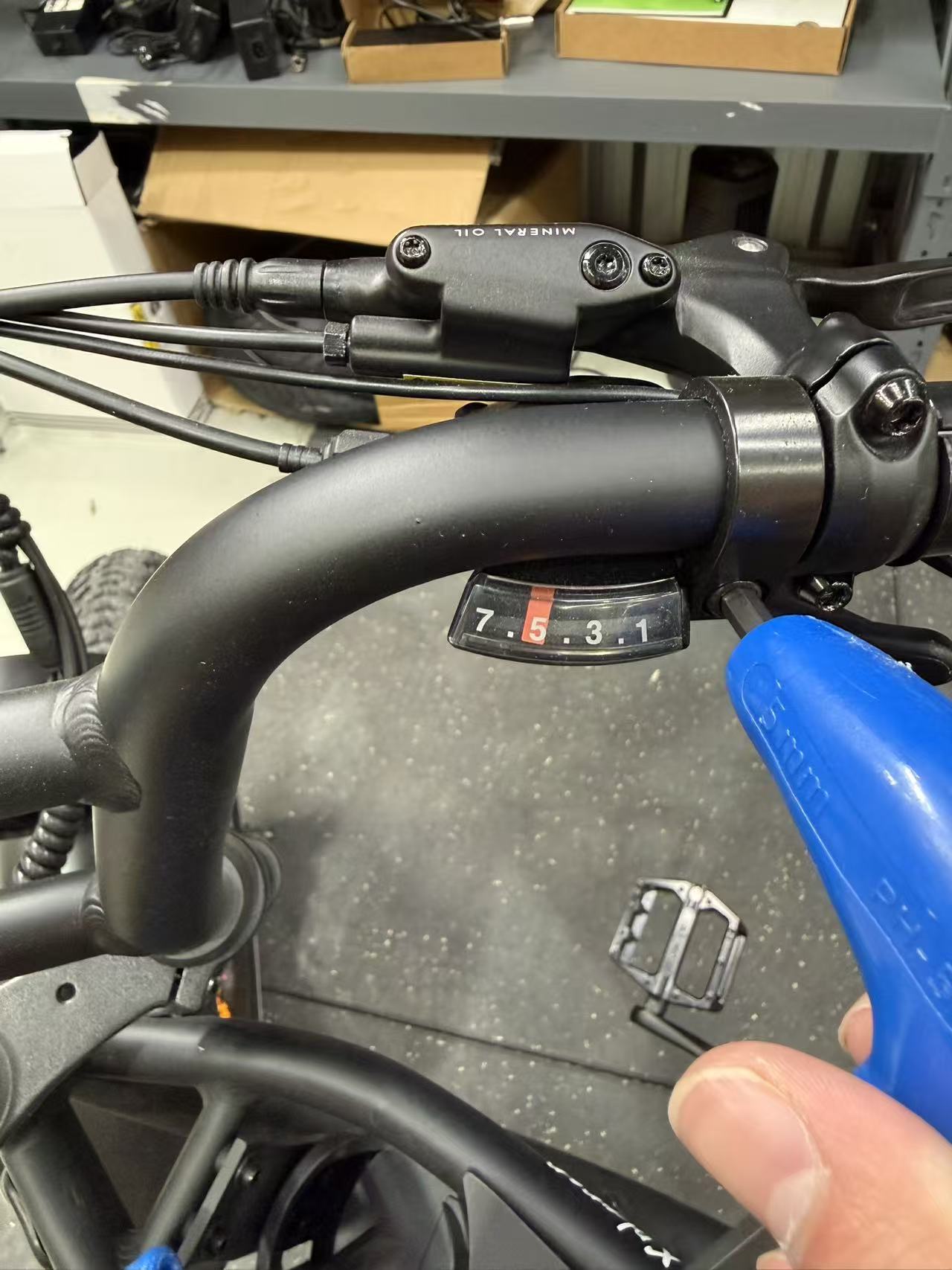

- Repeat the same steps on the right handlebar for the right mirror. Use a 5 mm Allen key for the gear shifter and a 4 mm Allen key for the front brake lever.
